Substrates / BK7 Glass Substrate
BK7 is a borosilicate crown optical glass with high homogeneity, low bubble and inclusion content. Its good physical and chemical properties make it widely used in visible and near IR range. Most of windows, lenses and prisms, which used in laser, optical system, optical communication, are made from BK7 glass.

Material BK7 Optical Glass
Transmission 330 nm - 2100 nm
Diameter
Length or Width
2.00-300.00mm +/-0.05mm (or per request)
Thickness >330um +/-50um
Polish Single Surface Fine Polished, the other surface lapped
Double Surface Fine Polished
Surface Quality 10-5 Scratch and Dig per MIL-O-13830A (or per request)
Flatness Lambda/10 per 1-Inch Area (or per request)
Parallelism better than 20"
Bevel 0.05mm x 45-Deg
Thermal Expansion Coefficient 7.5 x 10-6 /K
Density 2.51 g/cm3

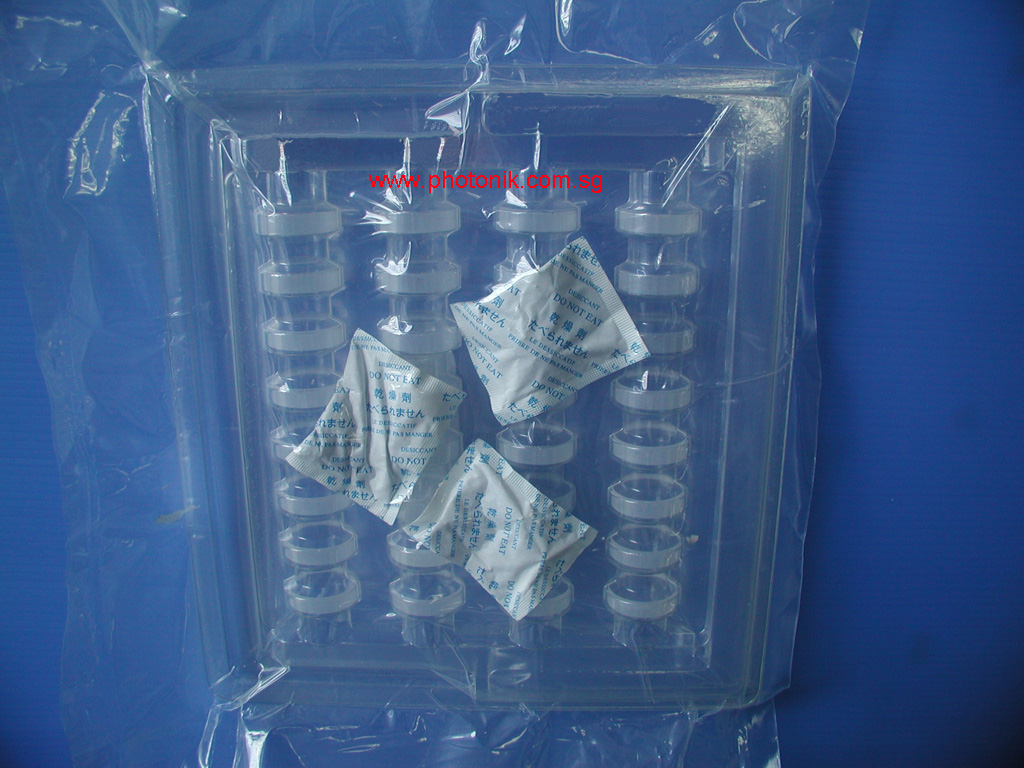

Packaging Vacuum Package with Dessicant As Shown Below
